Used Coke and Coal Gasification Plant

• Plant# 274
• Capacity 650,000 TPY

Plant Description

This plant uses petroleum coke or coal coke to produce synthetic gas, which can be raw material for the manufacturing of many chemicals such as ammonia, methanol, hydrogen cyanide, etc., and fuel for electrical power plants. This complete plant includes coke handling system, gasification reactors, syngas scrubber and purification system, as well as slag treatment system. The plant can process 650,000 TPY of coke.

Major Equipment

Coke handling and conveying system
Grinder and sander
Ball mills
Gasification reactors
Slag crashers and handing system
Syn gas scrubber
Washing and flushing system
Sour gas treator
Acid gas remover.

877-736-9320

Used Heat Exchangers

Phoenix Equipment has a large inventory of used, unused, and reconditioned Heat Exchangers. Phoenix's inventory of Heat Exchangers consist of: Air Cooled, Plate Type, Scraped Surface, Alloy Shell & Tube, Carbon Shell & Tube, Stainless Shell & Tube, and Spiral Heat Exchangers.

We are a leading provider of new, used, and reconditioned process equipment and asset management services to the chemical, plastics, pharmaceutical, food, mining and related industries.

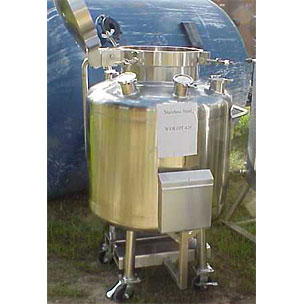

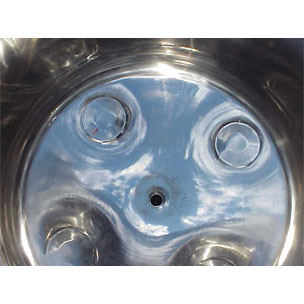

Roberts Co. 100 GAL Stainless Steel Tanks

• Stock# 3533
• Capacity 100 GAL

Equipment Description

Used 100 Gallon 316 Stainless Steel sanitary vertical pressure Tote/Tank. Internal rated 60 PSIG @ 340 deg F. 36" ID x 2' straight side. Sanitary construction. 18" top quick opening. Additional top inlets, CBO. Tank is leg mounted with fork slots and casters. Mfg by Roberts, S/N: 04095S-2, NB# 588 (Qty - 3 available)

877-736-9320

Stainless Steel Reactors

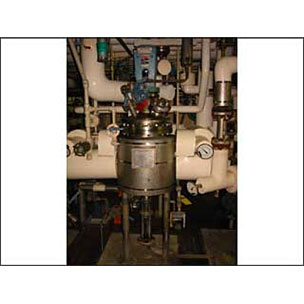

Northland Stainless 10 GAL Stainless Steel Reactors

• Stock# 5783
• Capacity 10 GAL

Equipment Description

Used 10 gallon Northland Stainless Reactor, 316L Stainless Steel Construction, bolt on removable dished top, dish bottom, rated 100 PSI and full vacuum, +350/-320 degrees F, jacketed for 100 PSI and full vacuum at +350/-320 degrees F, Model XDHDS-100 Lightnin Agitator Drive with mechanical seal and lubricator, 3 blade retreat curve agitator, baffles, (3) 1.5", (1) 3" sight glass, top nozzles, 1.5" center bottom outlet with plug valve, Serial No. 895020-2, National Board No. 953, New 1990.

• Manufacturer Northland Stainless

Titanium Heat Exchanger

3010 Sq. Ft. Titanium Heat Exchanger

• Stock# 3076
• Capacity 3010 Sq. Ft.

Equipment Description

Used 3,010 Sq. Ft. Titanium Limited (Canada) Titanium (SB-265) Horizontal One-Pass Shell & Tube Heat Exchanger. Shell rated 50psi @ 250F; Tube side rated 75psi @ 250F. (728)- 1"OD Tubes Shell: 41.375" (1050 mm) dia. x 15' 10" (4826 mm) length. 304L-SS Heads (Approx 20' AOL). Serial # 50098; National Board # 102; Built 1992. Estimated Weight: 9,700 lbs

• Manufacturer Titanium Limited (Canada)

Need Help? Call Today!

877-736-9320

Chillers for Sale

Frick 300 Ton Chillers

USED FRICK MODEL RWB II 408E ROTARY SCREW PACKAGED CHILLER. 300 TON @ -15 deg F. R134A REFRIGERANT. 300 PSI, 700 HP MOTOR, 3600 RPM MAXIMUM. BUILT 2001. R134A REFRIGERANT. WATER COOLED DESIGN. SKID ...

• Stock # 3859
• Capacity # 300 Ton
• View Details

Carrier 300 Ton Chillers

Used Carrier approximately 300 Ton Hermetic Centrifugal liquid type chiller. Model 19XR3032206BHH64, S/N Q64450, Compressor code 206, Cooler size 30, condenser size 32. Compressor data: 3/60/ 460 volt. ...

• Stock # 4490
• Capacity # 300 Ton
• View Details

Edwards 167 Gal Chillers

167 gallon tank Edwards Engineering Corp. Glyco Chiller. Model Cl-40-AHP-1. S/N 864056. Unit uses 30% propylene glycol solution. Refrigerant R-22. 3/60/460 volt. BTU/HR @ 46 degrees F water: 476. ...

• Stock # 20264
• Capacity # 167 Gal
• View Details

Century 84 Ton Chillers Used 84 ton Air Cooler. Air cooled condenser. Tube Material: AL finned Copper. Mfg by Century, Model PFC-84, Built-2004. S/N: 060607. BTUH/1deg. 41,862. (8) 1 HP top mounted fans. Test 450 PSI/ 140 Low.
